Aggressive acids, solvents, and high-purity fluids put tight connections under constant strain. PTFE ferrules answer that problem by sealing tubing to fittings while resisting chemical attack and heat. Engineers choose PTFE for demanding fluid handling because the polymer holds its shape and sealing force where many other materials swell, corrode, or contaminate the line. This guide covers the types, materials, applications, and selection points that matter in tubing and piping systems.
What Are PTFE Ferrules?
PTFE ferrules are small sleeve-shaped components that sit between a tube and a fitting body. When the nut tightens, the ferrule compresses against the tube wall and the fitting seat, which grips the tubing and closes the leak path. That single action gives the assembly both a mechanical hold and a chemically inert seal. Even a small weep at a joint can contaminate a process stream or corrode nearby hardware. Buyers who need dimensions, grades, and configurations can review the available PTFE ferrule fittings before finalising a specification for their tubing system.
Why Is PTFE Used for Ferrules?
PTFE resists nearly all industrial acids, bases, and solvents, so the ferrule survives fluids that attack metals and softer polymers. Its friction coefficient sits near 0.05 to 0.10, which lets the ferrule seat smoothly during tightening and reduces the risk of tube damage. Service temperatures reach 260°C, though the actual limit depends on pressure and the application.
The nonstick surface also limits material buildup on the tube end, which helps in lines that carry sticky or crystallising media. Where electrical insulation matters, PTFE adds strong dielectric properties, so the same component works near sensors.
What Types of PTFE Ferrules Fittings Are Available?
Manufacturers supply PTFE ferrules in several configurations, and each one suits a different tubing geometry and connection method. The following are the four most common types.
PTFE Tube Ferrules
PTFE tube ferrules grip the outer wall of a tube and seal it against the fitting body. They keep the joint leak-free and stop tube pullout under line pressure.
PTFE Compression Ferrules
PTFE compression ferrules deform under nut torque to form a tight seal around the tube. This design avoids welding, adhesives or other complex joining steps during installation and later repair.
PTFE Flared Ferrules
PTFE flared ferrules suit connections where the tube end flares to match the fitting geometry. The flared profile spreads the sealing load across a wider surface, which suits thin-wall tubing.
PTFE Custom Ferrules
PTFE custom ferrules are available in special dimensions, shapes and configurations to suit specialized equipment. They are machined or molded to the drawing by manufacturers who support unusual tube sizes and non-standard fitting designs.

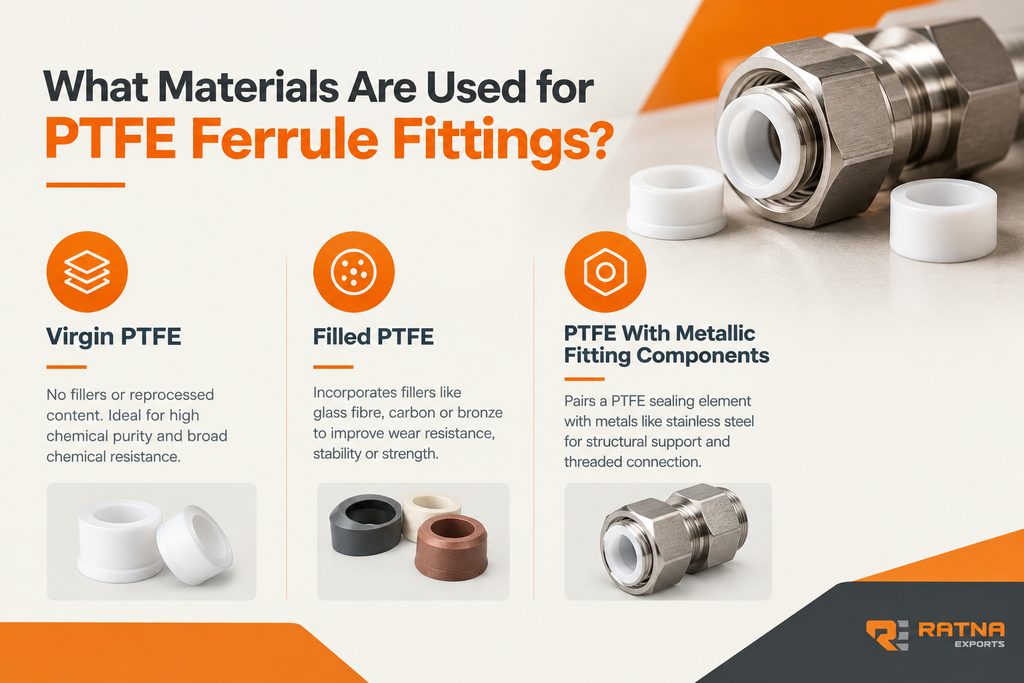

What Materials Are Used for PTFE ferrule fittings?
The ferrule material is most commonly PTFE and is often used in combination with other compatible materials in complete fittings, depending on the application and process fluid.
Virgin PTFE
Virgin PTFE contains no fillers or reprocessed content, which makes it the choice where high chemical purity and broad chemical resistance matter most. It suits pharmaceutical and laboratory fluid lines.
Filled PTFE
Filled PTFE incorporates fillers such as glass fibre, carbon, or bronze to change wear resistance, dimensional stability, or mechanical strength. Each option trades some chemical purity for performance in harsher duty.
PTFE With Metallic Fitting Components
PTFE with metallic fitting components pairs a PTFE sealing element with compatible metals such as stainless steel, which supply structural support and the threaded connection to the wider process system.
Where Are PTFE Ferrules Fittings Used?
Industries that move corrosive, pure, or reactive fluids specify these components for tubing connections. The five areas below show where they are used the most.
- Chemical processing plants use them on lines that carry corrosive fluids and aggressive acids.
- Pharmaceutical facilities value them where chemical compatibility, cleanliness, and controlled fluid handling all matter.
- Laboratory equipment and instrumentation tubing depend on them for reliable, chemically resistant connections.
- Food and beverage processors use them where the PTFE grade meets food contact requirements.
- General industrial fluid handling equipment and specialised process assemblies also incorporate them in their tubing systems.
What Should You Consider When Selecting PTFE Ferrules?
Six factors decide whether a ferrule performs as expected in service. Review each one against the system requirements and process data before placing an order.
- Match the ferrule to the tubing outside diameter and the fitting geometry.
- Check PTFE and every other fitting material against the process fluid.
- Compare continuous and peak operating temperatures with the ferrule rating.
- Select the ferrule and complete the fitting assembly according to the pressure conditions of the system.
- Decide whether virgin, filled, or specialised PTFE suits the application by weighing purity against mechanical demands.
- Confirm that the connection method allows proper installation without damaging the tubing.
Also Read: PTFE Ferrules vs Metallic Ferrules: Selecting the Right Fitting Solution
Conclusion
PTFE ferrule fittings are ideal for tubing and fluid handling systems where chemical resistance, low friction, temperature resistance and reliable sealing are required. Before you select a product, consider the ferrule type, PTFE formulation, dimensions, pressure, temperature and chemical compatibility. Ratna Exports is a steel stockist and has been in business for more than a decade now. We supply Corten steel sheets and tubes to customers all over the globe. Contact our team to discuss your tube size and pressure requirements.
