What Makes IRSM 41-97 Steel Different from Conventional Structural Steel?
IRSM 41-97 Steel Sheet is known for its exceptional creep resistance and high rupture strength. These plates are machinable and suitable for various fabrication processes, offering close tolerance and a smooth finish. Additionally, the material demonstrates corrosion resistance in aqueous environments. Ratna Exports stands out as a leading supplier and manufacturer of IRSM 41-97 Steel Sheets and Plates. Notably, the plates exhibit stress corrosion cracking resistance, attributed to the presence of nickel in the material. The SAILCOR IRS-M41 Corten Sheet showcases excellent oxidation resistance, as well as resistance to carburization and sulfidation. The material is durable and maintains accurate dimensions. It complies with various standards such as ASTM A588, ASTM 242, JIS, ASTM, AISI, GB, EN, and DIN.
The Corten IRSM 41-97 ASTM A588 Plates offer consistent mechanical properties and corrosion resistance. These plates can undergo either cold or hot rolling processes, featuring thicknesses ranging from 0.3mm to 50mm and widths from 750mm to 3500mm. Lengths extend up to 12m. Corrosion resistance and strength are inherent in the material’s composition, which includes carbon, manganese, phosphorus, sulfur, silicon, chromium, nickel, and copper.
The Corten IRSM 41-97 Strip-Mill Sheets boast a minimum yield strength of 340MPa and a minimum tensile strength of 480MPa. Applications span across chemical processing equipment, heat exchangers, sea water equipment, petrochemicals, gas processing, and more.
Factors to Consider Before Buying IRSM 41-97 Steel Sheets & Plates
For detailed information on Corten IRSM 41-97 Steel Shim Sheet types and pricing, please feel free to reach out to us.
Contact Ratna Exports today for a best offer & competitive quotation Of IRSM 41-97 Steel Sheets
Types of IRSM 41-97 Steel Sheets

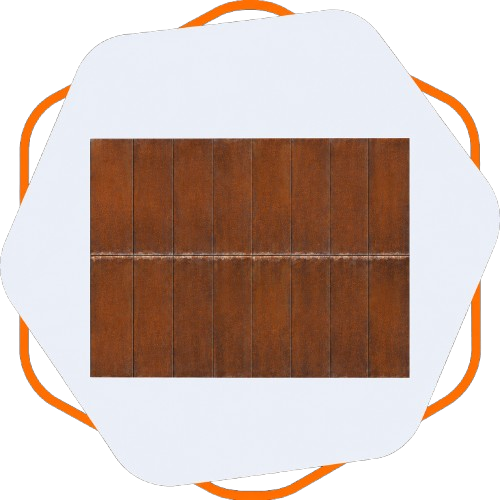

Welded IRSM 41-97 Corten Steel Plate
Cladded IRSM 41-97 Corten Sheets
Hot Rolled IRSM 41-97 Corten Sheets

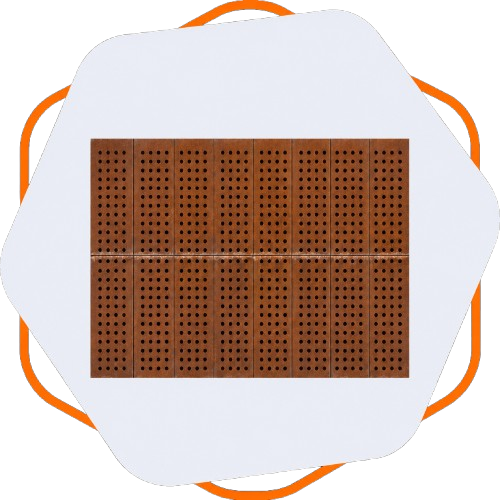

Perforated IRSM 41-97 Corten Sheets
Selecting the Appropriate Thickness and Size
| Standard | ASTM A588, A242, EN 10027-1, CR 10260 & IRSM |
| Material | Corten A , Corten B , S235J0W , S235J2W , S355J0WP , S355J0W , S355J2W , S355K2W , A588 Grade A , A588 Grade B , A588 Grade C , A242 Type 1 , A 588 Gr. K, A 242 Type-2, IRSM-41 |
| Thickness | 0.3-500mm |
| Width | 1000-3500 mm |
| Length | 1000 – 12000 mm |
| Production | Hot-Rolled (HR) / Cold-Rolled (CR) |
| Surface | Black painted, PE coated, Galvanised, color coated, anti rust varnished, anti rust oiled, chequered, etc |
What Makes IRSM 41-97 Steel Different from Conventional Structural Steel?
| Grade Corten IRSM 41-97 | C | Mn | P | S | Si | Cr | Ni | Mo | Cu | Fe |
| 0.10 | 0.25-0.45 | 0.075-0.112 | 0.030 | 0.28-0.72 | 0.35-0.49 | 0.20-0.49 | – | 0.30-0.39 | – |
High Strength for Structural Applications
| Grade | Standard | Tensile Strength MPa | Yield Strength MPa | Elongation in 2 inches (min.) % |
| IRSM 41-97 | Indian Railways | 480 min345 | 340 min | 21 |
IRSM 41-97 Steel Sheets Equivalent Grades
| Atmospheric Corrosion Resistant Steel | ||||
| Steel Grade | Material No. | |||
| TKS Standard | INDIAN Standard | EN 10025 | ASTM Standard | |
| Weathering Steel A* | IRSM 41-97 | S355JOWP | ASTM A 242 TYPE 1 | 1.8946 |
Supplier Inventory and Delivery Capabilities
Types Of IRSM 41-97 Sheets
| Corten IRSM 41-97 Plates | Corten Steel IRSM 41-97 Sheets |
| Corten IRSM 41-97 Plates | Corten IRSM 41-97 ASTM 588 Steel Sheets |
| Corten Steel IRSM 41-97 Plates | Corten Steel IRSM 41-97 Plates |
| Corten IRSM 41-97 Steel Sheets | Corten IRSM 41-97 Corrosion Resistance Steel Plates |
| Corten Steel IRSM 41-97 strip-mill Plate | ASTM A588 IRSM 41-97 Corten Steel Plates |
| Corten IRSM 41-97 ASTM A588 Strip-mill sheets | ASTM A588 Corten Steel IRSM 41-97 Cold Rolled Plates |
| Pressure Vessel Corten IRSM 41-97 Steel Plates | Corten Steel IRSM 41-97 Boiler Quality Plates |
| ASTM A588 Corten Steel IRSM 41-97 High Tensile Plates | Corten IRSM 41-97 ASTM A588 Structural Steel Plates |
| Corten IRSM 41-97 Steel Plates Distributors | High Tensile Corten Steel IRSM 41-97 Plates |
| A 588 High Strength Low Corten IRSM 41-97 Steel Plate | ASTM A588 Corten IRSM 41-97 Abrasion Resistant Steel Plates |
| Corten IRSM 41-97 ASTM A588 Hot Rolled Steel Plates Stockiest | ASTM A588 Pressure Vessel IRSM 41-97 Corten Steel Plates |
| A588 IRSM 41-97 Corten Steel Plates Stockholder | Corten IRSM 41-97 Abrasion Resistant Steel Plates Exporter |
| Corten IRSM 41-97 ASTM A588 Structural Steel Plate, Suppliers | A588 IRSM 41-97 Corten Steel Plates Manufacturer |
Please note this is an approx IRSM 41-97 Steel Sheets price in India. For final IRSM 41-97 Steel Sheets price list please mail us.
Corten IRSM 41-97 Steel Plate Price List in India
| IRSM 41-97 Steel Plate Price List | IRSM 41-97 Strip-Mill Sheets Per Unit (INR) |
|---|---|
| IRSM 41 Corten Steel Plate | Rs 65/ Kilogram |
| Corten A Irsm Plate, Thickness: 0.50-15 Mm | Rs 95/ Kilogram(s) |
| Rectangular IRSM 41 – 97 Corten Steel Plate, | Rs 40/ Kilogram |
FAQs
IRSM 41-97 steel is primarily used for railway wagons, bridges, structural fabrication, and other outdoor applications where atmospheric corrosion resistance and long service life are important.
IRSM 41-97 develops a stable protective oxide layer when exposed to the atmosphere. This layer slows further corrosion, reducing maintenance compared to conventional structural steel.
Depending on the environment and project requirements, IRSM 41-97 may be used without painting because its protective patina provides natural corrosion resistance. However, protective coatings may still be specified for certain industrial or marine environments.
Buyers should verify the required dimensions, thickness, project specifications, material test certificates, fabrication requirements, and supplier availability to ensure the material meets application needs.
Its weathering properties minimize corrosion and reduce the need for frequent repainting or surface treatment, resulting in lower maintenance costs and improved lifecycle value for outdoor structures.
Industries That Commonly Use IRSM 41-97 Steel
- Pharmaceutical Industry
- Oil Refineries
- Textile Industries
- Nuclear Plants
- Chemical Industries
- Power Plant
- Petrochemicals Industry
- Sugar Industry
- Engineering Industry
- Chemical Industry
- Food Industry
- Marine Industry
