Pipeline isolation depends on the right blanking component, and two options dominate this space: Paddle Blank Flanges and Spectacle Blind Flanges. Both block flow between flange faces during shutdown. Yet their design and handling differ enough to change how a team plans its work. A single-disc paddle is placed between two flanges, while a spectacle blind pairs a solid disc with an open ring on one connected body. Piping layout, maintenance frequency, and process demands decide which fits a given line. This blog compares both so engineers and buyers can make the right choice.
What Are Paddle Blank Flanges and Spectacle Blind Flanges?
A paddle blank flange is a flat disc with a handle, inserted between two pipe flanges to stop flow during isolation work. Paddle Blank Flanges come as standalone discs, sized to match the flange bore and pressure class of the line. A spectacle blind combines a solid blanking disc and a ring spacer connected by a short web, shaped like a pair of spectacles. Rotating the assembly switches the line between open and closed states without removing the part. Carbon Steel Paddle Blank Flanges remain a common choice for plants needing a lightweight, removable disc for occasional line breaks.

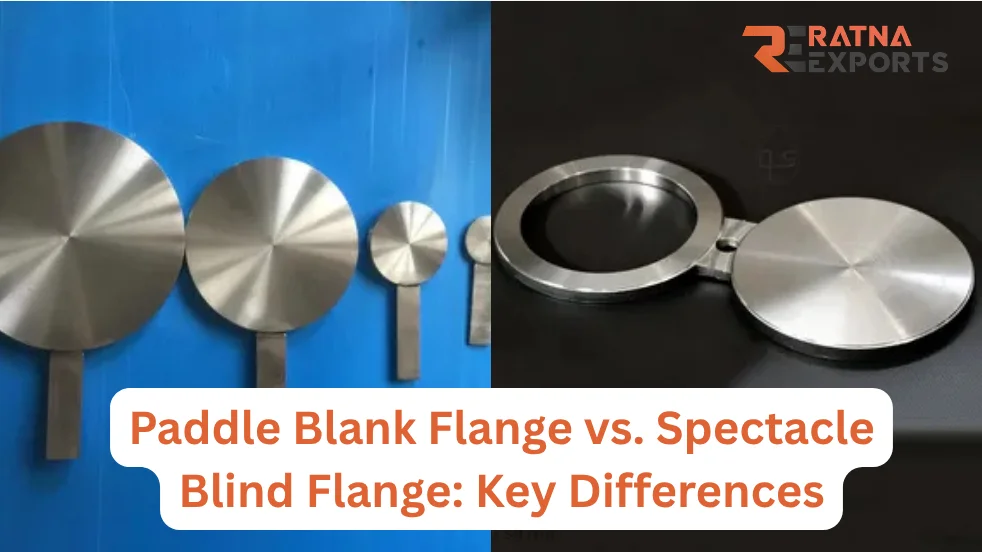

Paddle Blank Flange vs. Spectacle Blind Flange: Key Differences
Design and Construction
Paddle Blank Flanges use a single flat disc with a projecting handle, cut to the flange’s bore diameter and pressure class. A Spectacle Blind Flange joins two discs, one solid and one open, into a figure-eight shape through a connecting web. The paddle stays compact; the spectacle blind adds material for its dual-disc body.
Installation Method
Installing a paddle blank means separating the flange bolts fully, inserting the disc, and re-torquing, repeated each time the line opens or closes. A spectacle blind stays fixed within the gap. Operators loosen the bolts, rotate the assembly 180 degrees, and re-tighten, cutting handling time.
Maintenance and Operational Flexibility
Frequent isolation favors the spectacle blind, since rotation avoids removing the component entirely. Paddle Blank Flanges suit infrequent isolation, where the disc goes in during a shutdown and stays out for months. Downtime runs shorter with spectacle blinds on lines needing repeated cycles.
Space Requirements
Paddle Blank Flanges need minimal clearance since only a flat disc slides into the gap. Spectacle blinds demand more radial space for the ring and web, which can restrict congested runs. Tight flange spacing generally suits paddle blanks better.
Pressure and Service Applications
Both types handle high-pressure service when sized correctly, though spectacle blinds see wider use in refineries running continuous isolation cycles under ASME B16.48. Paddle Blank Flanges, including grades built to ASTM A105, suit steam lines and units isolated during scheduled turnarounds.
Cost and Lifecycle Considerations
Paddle blanks cost less upfront due to simpler machining and lower material use. Spectacle blinds carry higher initial cost but reduce long-term labor expense on lines needing frequent isolation. Teams weigh purchase price against isolation frequency before deciding.
Comparison Table
The table below summarizes core differences for quick reference during procurement or engineering review.
| Parameter | Paddle Blank Flange | Spectacle Blind Flange |
| Design | Single flat disc with handle | Figure-eight, solid disc plus ring |
| Installation | Full removal and reinsertion | Rotate 180 degrees within joint |
| Maintenance | Suited to infrequent isolation | Suited to frequent isolation |
| Space Requirement | Minimal clearance needed | More radial space needed |
| Best Applications | Scheduled shutdowns, inspections | Continuous process isolation cycles |
| Operational Flexibility | Lower, disc handled separately | Higher, stays within the line |
When Should You Choose a Paddle Blank Flange?
Occasional isolation during scheduled shutdowns, inspections, and pressure testing suits Paddle Blank Flanges well. Industries running periodic turnarounds, rather than daily line breaks, benefit from the lower cost and simpler handling this design offers. Water treatment plants, steam systems, and general process piping commonly specify paddle blanks for these intervals.
Common Selection Mistakes to Avoid
When the additional labour costs for constant handling are taken into account, choosing a blanking part just on price can often prove costly. Ignoring the isolation frequency results in mismatched components, either overpaying for unused flexibility or underpaying for a design that needs constant removal. Ignoring flange gap space can drive a redesign. Selecting the wrong material grade risks corrosion. Skipping future operational plans can leave a plant with a solution that no longer fits.
Selecting the Right Line Blanking Solution
Paddle Blank Flanges and Spectacle Blind Flange designs solve pipeline isolation differently, one built for periodic use, the other for repeated cycling within a fixed joint. Match the choice to the maintenance frequency, space and pressure and you improve safety and keep schedules predictable. Getting this right avoids costly rework, and helps to ensure predictable pipeline performance. Call Ratna Exports to check availability of stocks for your next project.
