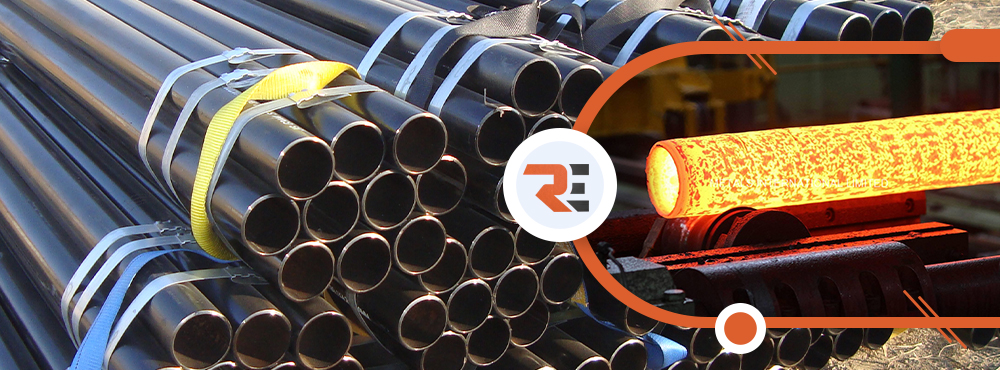

ASTM A106 pipes, ASTM A106 Grade B Pipes Supplier, A106 Galvanized Pipe, A106 Carbon Steel Pipe, ASTM A106 Grade B Material, ASTM A106 Gr B Sch 40 ERW Pipe, A106 Galvanized Pipe and SA 106 Gr B Sch 40 Seamless Pipe supplier in Mumbai, India
ASTM A106 pipes are made with key elements like sulfur, carbon, manganese, nickel, molybdenum, and copper, making them highly corrosion-resistant. These mild steel pipes are designed for high-pressure and high-temperature applications across many industries. They are available in various schedules and standard thicknesses ranging from 3mm to 12mm. The A106 Carbon Steel Pipes can be easily bent, flanged, and welded, with ends that can be either furnished or capped. The ASTM A106 Grade B Material boasts excellent mechanical properties, with a minimum tensile strength of 415 MPa and a yield strength of 240 MPa. These pipes are widely used in water supply systems, power plants, plumbing, fabrication, heating, and the paper and pulp industries. As a leading supplier of ASTM A106 Grade B Pipes in India, we offer high-quality products at competitive prices.
The ASTM A106 Grade B specification covers seamless carbon steel pipes for high-temperature service, available in NPS 1-8 to NPS 48, with nominal wall thickness as specified in ANSI B36.10. Pipes of other dimensions can be provided if they meet all other requirements of this specification. These seamless pipes are suitable for bending, flanging, similar forming operations, and welding. A suitable procedure for the steel grade and intended use is assumed for welding.
The A106 Grade B Seamless Pipe comes in diameters from ¼ inch to 30 inches and is used in applications where fluids and gases move at high temperatures. Made from a single billet, these seamless pipes are 20% stronger than welded pipes, making them more expensive in many grades. The A106 Grade B Welded Pipe has a seam but is very durable and has a more precise wall thickness compared to seamless pipes. The ASTM A106 Grade B Schedule 40 ERW Pipe is produced by fusion welding steel and has a temperature rating of -20 to 400 degrees F. These pipes can be cold rolled for excellent properties. Thin-walled SA 106 Grade B Schedule 40 Seamless Pipes are suitable for mild and medium pressure applications and are smooth and easy to maintain. All our products, including A106 Steel Pipes, can be customised in different shapes and sizes to meet our clients’ requirements.
A106 galvanised pipes are coated with zinc, which protects them from corrosion. These magnetic pipes are commonly used in water supply systems. The A106 Grade B Hot Dip Galvanized Pipe is dipped in zinc for stress and environmental protection, enhancing other properties. The SA 106 Grade B Internally Coated Pipe increases the flow of gases and liquids by 20% and can withstand temperatures up to 80 degrees C. In A106 Grade B Epoxy Coated Pipes, a resin and polyamine hardener provide an abrasion-resistant coat that reduces the need for frequent repairs and maintenance. The A106 Grade B FBE Coated Pipe is flexible and highly resistant to soil pressure, making it smooth and easy to clean. Our skilled workers employ the latest technology and the highest quality SA 106 Grade B material to create top-notch products.
The A106b Seamless Pressure Pipe is created by passing a billet to form a hollow pipe, capable of withstanding extreme stress without deformation. These pipes come in various schedules and wall thicknesses. The A106 Grade B Line Pipe Material is very strong, designed for good corrosion resistance and strength under load. The SA106 Grade B Schedule 40 Pipe is available in nominal pipe sizes from ¼ inch to 32 inches, with a wall thickness of 6.02mm and an outside diameter of 114.30mm. Please get in touch with us if you have any questions or want to learn more about the A106 Pipe.
Contact Ratna Exports today for a best offer & competitive quotation Of ASTM A106 Gr B Seamless Pipes
ASTM A106 Gr B Seamless Pipes Specification
ASTM A106 Grade B Pipe Sizes: Nominal Pipe Size 1/2″ to 48″ O.D.
Wall Thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, DIN, JIS standard thickness
Length: 5-7m, custom-made
Specialized in: Thick Wall Pipe
Carbon Steel Pipe Standard: ASTM A53, A106, API 5L, ASME B36.10M-1996, DIN1626, DIN1629, DIN17175, DIN 2448, JIS G3452, JIS G3454, JIS G3455, JIS G3456, JIS G3457, JIS G3461
Material: Q235, 20#, Q345
A53B, A106B, API 5L B, X42, X46, X52, X60, X65
ST37.0,ST35.8, St37.2, St35.4/8, St42,St45, St52, St52.4
STP G38, STP G42, STPT42, STB42,STS42, STPT49, STS49
Weld Alternatives: ERW, HF, DSAW/SAWL, SMLS, HSAW
Surface: Black paint, varnish paint, anti-rust oil, hot galvanized, cold galvanized, 3PE, etc
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Hardness Test, Blow Test, Impact Test, etc.), Exterior Size Inspection, Hydrostatic Test (The standard pressure is limited to 20,7 MPa (3000 psi)), X-ray Test.
Mill Test Certificate: EN 10204/3.1B, Mill TC EN 10204 3.1 | Lab Test Reports | Ex-Stock
Third-party inspection: SGS, BV, Lloyds, etc.
OD Size Range: |
ERW: 0.375″ through 30″ HF: 0.840″ through 24″ DSAW/SAWL: 12.75″ through 144″ SMLS: 0.840″ through 26″ HSAW: 8.625″ through 144″ |
Wall Thickness ASTM A106 Grade B : |
ERW: 0.120″ through 1.000″ HF: 0.120″ through 1.000″ DSAW/SAWL: 0.250″ through 6.000″
SMLS: 0.250″ through 2.500″ HSAW: 0.250″ through 1.000″ |
Lengths: |
Single Random Double Random Custom (up to 300′) |
Surface Finishes: |
Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap. Our company implements various steel pipe external coating projects, including single-layer/double-layer FBE, 2PE,3PE,3PP, and other anti-corrosion coatings with the performed standards DIN30670, DIN30671, DIN30678, CAN/CSA-Z245.21-M92, SY/T4013-2002, and SY/T0315-97, etc. |
End Finishes: | Beveled, Square Cut, Threaded & Coupled. |
Additional Services: | Internal Coating |
Carbon Steel Pipe & Tubes Standard |
API 5L, API-2B, CSA Z245, ASTM A53, A106, ASTM A252, AS 1163, IPS 190 etc ASTM A53, ASTM A106, ASTM A500/501-98, ASTM A519-98, JIS G3441-1994, JIS G3444-1994, BS EN 10210-1, GB3087-1999, ASTM A179, ASTM A106, JIS G3454, GB/T8163-1999, ASTM A53-98, JIS G3452-1998, JIS G3454-1998, ASTM A106, DIN 1629-1984, API 5D, GB 9948-1988 |
Steel grade | ASTM A 106 GR.B/ SA 106 GR.B |
Origin | Indian Origin, Japanese Origin, Korean Origin, European Origin, US Origin, Ukraine Origin, Russian Origin |
Mills | Indian Mills, Japanese Mills, Korean Mills, European MIlls, US Mills, Russian Mills, Ukraine MIlls |
Value added service | Galvanized Finish | Black Oil Paint | Heat Marked Pipes | Anti-Corrosion Oil, Galvanised Finish, Finish as per customer Requirements |
Specialized Line Pipe | ASTM A106 Grade B Pipe, Seamless and Welded API 5L Grade B Carbon Steel Pipes Up To 48” Available in ready stock |
ASTM A106 Grade B Pipe Thickness | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
ASTM A106 Grade B Pipe Applications | Oil Refineries, Petrochemicals, Power Generation (Nuclear/Thermal), Steel, Sugar, Boiler Equipments, Pressure Vessels, and General Engineering Purposes |
High Yield Seamless Pipe | API 5L Gr. X42, X46, X52, X56, X60, X65, X70, X80, X100 PSL-1/PSL-2 |
High Yield ERW/SAW Pipe | API 5L Gr. X42, X46, X52, X56, X60, X65, X70, X80, X100 PSL-1/PSL-2 |
High Yield ERW/SAW Pipe | ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485 |
ASTM A106 Grade B Pipe Other similar group grades | GR A, GR B, X42, X46, X52, X56, X60, X65, X70, X80, etc. |
End Connections for Line Pipes | Plain, Bevel, Screwed, Threaded |
ASTM A106 Grade B Pipe Type | Seamless / ERW / Welded / Fabricated / CDW |
API 5L Pipe Form | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pancake Coils, Hydraulic Tubes |
API Line Pipe Length | Single Random, Double Random & Required Length, Custom Size – 12 Metre lengths |
ASTM A106 Grade B Pipe Packing | ASTM A106 Grade B Pipe Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
Finishes | Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap.End Finishes: Beveled, Square Cut, Threaded & Coupled. |
Specials | Customise Sizes and Specifications are also available as per the customer’s specification in a short time. |
Specialized Products | ASTM A106 Grade B Drill Pipe, ASTM A106 Grade B Petroleum Cracking Tube, ASTM A106 Grade B Seamless Steel Tubes for Liquid Service, ASTM A106 Grade B Tube for Structural Purposes, A106 GR.B Seamless Carbon Steel, ASTM A106 Grade B Line Pipe |
Inspection, Test Reports | Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non-Destructive Test Reports, India Boiler Regulations (IBR) Test Certificate, Mill TC EN 10204 3.1, Lab Test Reports, Flatten test, Impact test, Tensile test, Yield Test, Ex-Stock, Hydro test, UT test, DWT test if agreed, etc. |
Type of ASTM A106 Gr B Seamless Pipes
12 inch astm a106 grade b seamless steel pipe
ASTM A106 Grade B sch40 seamless steel pipe
ASTM A106 GR.B 4" SCH 40 Steel Pipe
ASTM A106 grade b PLS1 PLS2 seamless steel pipe
Chemical Composition ASTM A106 Gr B Seamless Pipes
Grade A | Grade B | |
Carbon max. % | 0.25 | 0.30 |
Manganese % | 0.27 to 0.93 | 0.29 to 1.06 |
Phosphorous, max. % | 0.035 | 0.035 |
Sulfur, max. % | 0.035 | 0.035 |
Silicon, min.% | 0.10 | 0.10 |
Chrome, max. % | 0.40 | 0.40 |
Copper, max. % | 0.40 | 0.40 |
Molybdenum, max. % | 0.15 | 0.15 |
Nickel, max. % | 0.40 | 0.40 |
Vanadium, min.% | 0.08 | 0.08 |
Degree of Bend |
Diameter of Mandrel |
|
For Normal A106 Uses |
90 |
12 x nom dia. of pipe |
For Close Coiling |
180 |
8 x nom dia. of pipe |
ASTM A106 Gr B Seamless Pipes Coating Standard
ANSI/AWWA C104/A21.4 American National Standard for Cement-Mortar Lining for Ductile-Iron Pipe and Fittings for Water
ISO 21809 Petroleum and natural gas industries – External coatings for buried or submerged pipelines used in pipeline transportation systems
DIN 30670 Polyethylene coatings for steel pipes and fittings
ASTM A106 Grade B Pipe Coating Type |
ASTM A106 Grade B Pipe Coating Layer |
ASTM A106 Grade B Pipe Coating thickness |
Three layers polyethylene |
Inside layer: epoxy (Green) |
2.0 -4.5mm |
Mid layer: adhesive (White) |
||
Outside layer: polyethylene (Black) |
||
Two layers polyethylene |
Inside layer: adhesive |
2.0 -4.5mm |
Outside layer: polythene |
||
Epoxy |
Epoxy |
200-400 um |
Two layers epoxy |
Inside layer: epoxy (Green) |
400-800 um |
Outside layer:intensity epoxy (sage green) |
||
Three layers polyethylene |
Inside layer: epoxy (Green) |
2.5 -3mm |
Mid layer: adhesive (White) |
||
Outside layer: polypropylene (White) |
Types Of ASTM A106 Gr B Seamless Pipes
ASTM A106 Grade B Pipe
A106 Grade B Pipe
ASTM A106 Grade B SMLS Pipe
ASTM A106 Grade B HSAW Pipe
ASTM A106 Grade B Line Pipe
ASTM A106 Grade B Seamless Line Pipe
ASTM A106 Grade B SSAW Pipe
ASTM A106 Grade B Spiral Pipe
ASTM A106 Grade B Welded Pipe
ASTM A106 Grade B ERW Pipe
ASTM A106 Grade B EFW Pipe
ASTM A106 Grade B HFW Pipe
ASTM A106 Grade B DSAW Pipe
ASTM A106 Grade B SAW Pipe
ASTM A106 Grade B LSAW Pipe
ASTM A106 Grade B Pipe
Steel Pipe Grade B A53/A106
STD ASTM A106 Grade B Pipe
SCH XS ASTM A106 Grade B Pipe
SCH 80 ASTM A106 Grade B Pipe
SCH 160 ASTM A106 Grade B Pipe
API 5 l gr. B pipeline
Carbon Spiral Steel Pipe
SCH 40 ASTM A106 Grade B Pipe
SCH XXS ASTM A106 Grade B Pipe
Schedule 40 carbon steel pipe
SCH 60 ASTM A106 Grade B Pipe
Precision seamless pipe
ASTM A106 Grade B ERW Oval pipeline
Anti-rust Galvanised Pipe
Looking to buy ASTM A106 Gr B Seamless Pipes From a manufacturer in India?
ASTM A106 Gr B Seamless Pipes Pressure Ratings
Maximum Allowable Pressure (psig) |
||||||||||
Pipe Size (inches) |
Pipe Schedule |
Temperature (oF) |
||||||||
100 |
200 |
300 |
400 |
500 |
600 |
650 |
700 |
750 |
||
1/2″ |
401) |
3730 |
3730 |
3730 |
3730 |
3730 |
3730 |
3730 |
3581 |
3233 |
802) |
5252 |
5252 |
5252 |
5252 |
5252 |
5252 |
5252 |
5042 |
4552 |
|
160 |
6920 |
6920 |
6920 |
6920 |
6920 |
6920 |
6920 |
6643 |
5997 |
|
3/4″ |
40 |
2447 |
3059 |
3059 |
3059 |
3059 |
3059 |
3059 |
2937 |
2651 |
80 |
4299 |
4299 |
4299 |
4299 |
4299 |
4299 |
4299 |
4127 |
3725 |
|
160 |
6393 |
6393 |
6393 |
6393 |
6393 |
6393 |
6393 |
6137 |
5541 |
|
1″ |
40 |
2857 |
2857 |
2857 |
2857 |
2857 |
2857 |
2857 |
2743 |
2476 |
80 |
3950 |
3950 |
3950 |
3950 |
3950 |
3950 |
3950 |
3792 |
3423 |
|
160 |
5757 |
5757 |
5757 |
5757 |
5757 |
5757 |
5757 |
5526 |
4989 |
|
1 1/2″ |
40 |
2116 |
2116 |
2116 |
2116 |
2116 |
2116 |
2116 |
2032 |
1834 |
80 |
2983 |
2983 |
2983 |
2983 |
2983 |
2983 |
2983 |
2864 |
2585 |
|
160 |
4331 |
4331 |
4331 |
4331 |
4331 |
4331 |
4331 |
4157 |
3753 |
|
2″ |
40 |
1783 |
1783 |
1783 |
1783 |
1783 |
1783 |
1783 |
1712 |
1545 |
80 |
2575 |
2575 |
2575 |
2575 |
2575 |
2575 |
2575 |
2472 |
2232 |
|
160 |
4217 |
4217 |
4217 |
4217 |
4217 |
4217 |
4217 |
4049 |
3655 |
|
3″ |
40 |
1693 |
1693 |
1693 |
1693 |
1693 |
1693 |
1693 |
1625 |
1467 |
80 |
2394 |
2394 |
2394 |
2394 |
2394 |
2394 |
2394 |
2298 |
2074 |
|
160 |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
3456 |
3120 |
|
4″ |
40 |
1435 |
1435 |
1435 |
1435 |
1435 |
1435 |
1435 |
1378 |
1244 |
80 |
2075 |
2075 |
2075 |
2075 |
2075 |
2075 |
2075 |
1992 |
1798 |
|
160 |
3376 |
3376 |
3376 |
3376 |
3376 |
3376 |
3376 |
3241 |
2926 |
|
5″ |
40 |
1258 |
1258 |
1258 |
1258 |
1258 |
1258 |
1258 |
1208 |
1090 |
80 |
1857 |
1857 |
1857 |
1857 |
1857 |
1857 |
1857 |
1783 |
1610 |
|
160 |
3201 |
3201 |
3201 |
3201 |
3201 |
3201 |
3201 |
3073 |
2774 |
|
6″ |
40 |
1143 |
1143 |
1143 |
1143 |
1143 |
1143 |
1143 |
1098 |
991 |
80 |
1794 |
1794 |
1794 |
1794 |
1794 |
1794 |
1794 |
1722 |
1554 |
|
160 |
3083 |
3083 |
3083 |
3083 |
3083 |
3083 |
3083 |
2960 |
2672 |
|
8″ |
40 |
1006 |
1006 |
1006 |
1006 |
1006 |
1006 |
1006 |
966 |
872 |
80 |
1586 |
1586 |
1586 |
1586 |
1586 |
1586 |
1586 |
1523 |
1375 |
|
160 |
2976 |
2976 |
2976 |
2976 |
2976 |
2976 |
2976 |
2857 |
2579 |
|
10″ |
40 |
913 |
913 |
913 |
913 |
913 |
913 |
913 |
876 |
791 |
80 |
1509 |
1509 |
1509 |
1509 |
1509 |
1509 |
1509 |
1448 |
1308 |
|
160 |
2950 |
2950 |
2950 |
2950 |
2950 |
2950 |
2950 |
2832 |
2557 |
|
12″ |
40 |
855 |
855 |
855 |
855 |
855 |
855 |
855 |
819 |
741 |
Please note this is an approx ASTM A106 Gr B Seamless Pipes price in India. For final ASTM A106 Gr B Seamless Pipes price list please mail us.
ASTM A106 Gr B Seamless Pipes Sizes
Size |
Size |
OD |
WT |
Length |
Kgs./Mtr. |
1/2″ x Sch 40 |
15 x Sch 40 |
21.3 OD |
2.77 mm |
5 To 7 |
1.27 |
1/2″ x Sch 80 |
15 x Sch 80 |
21.3 mm |
3.73 mm |
5 To 7 |
1.62 |
1/2″ x Sch 160 |
15 x Sch 160 |
21.3 mm |
4.78 mm |
5 To 7 |
1.95 |
1/2″ x Sch XXS |
15 x Sch XXS |
21.3 mm |
7.47 mm |
5 To 7 |
2.55 |
3/4″ x Sch 40 |
20 x Sch 40 |
26.7 mm |
2.87 mm |
5 To 7 |
1.69 |
3/4″ x Sch 80 |
20 x Sch 80 |
26.7 mm |
3.91 mm |
5 To 7 |
2.20 |
3/4″ x Sch 160 |
20 x Sch 160 |
26.7 mm |
5.56 mm |
5 To 7 |
2.90 |
3/4″ x Sch XXS |
20 x Sch XXS |
26.7 OD |
7.82 mm |
5 To 7 |
3.64 |
1″ x Sch 40 |
25 x Sch 40 |
33.4 OD |
3.38 mm |
5 To 7 |
2.50 |
1″ x Sch 80 |
25 x Sch 80 |
33.4 mm |
4.55 mm |
5 To 7 |
3.24 |
1″ x Sch 160 |
25 x Sch 160 |
33.4 mm |
6.35 mm |
5 To 7 |
4.24 |
1″ x Sch XXS |
25 x Sch XXS |
33.4 mm |
9.09 mm |
5 To 7 |
5.45 |
1 1/4″ x Sch 40 |
32 x Sch 40 |
42.2 OD |
3.56 mm |
5 To 7 |
3.39 |
1 1/4″ x Sch 80 |
32 x Sch 80 |
42.2 mm |
4.85 mm |
5 To 7 |
4.47 |
1 1/4″ x Sch 160 |
32 x Sch 160 |
42.2 mm |
6.35 mm |
5 To 7 |
5.62 |
1 1/4″ x Sch XXS |
32 x Sch XXS |
42.2 mm |
9.7 mm |
5 To 7 |
7.78 |
1 1/2″ x Sch 40 |
40 x Sch 40 |
48.3 OD |
3.68 mm |
5 To 7 |
4.05 |
1 1/2″ x Sch 80 |
40 x Sch 80 |
48.3 mm |
5.08 mm |
5 To 7 |
5.42 |
1 1/2″ x Sch XXS |
40 x Sch XXS |
48.3 mm |
10.15 mm |
5 To 7 |
9.55 |
2″ x Sch 40 |
50 x Sch 40 |
60.3 OD |
3.91 mm |
5 To 7 |
5.44 |
2″ x Sch 80 |
50 x Sch 80 |
60.3 mm |
5.54 mm |
5 To 7 |
7.48 |
2″ x Sch 160 |
50 x Sch 160 |
60.3 mm |
8.74 mm |
5 To 7 |
11.12 |
2 1/2″ x Sch 40 |
65 x Sch 40 |
73 OD |
5.16 mm |
5 To 7 |
8.64 |
2 1/2″ x Sch 80 |
65 x Sch 80 |
73 mm |
7.01 mm |
5 To 7 |
11.41 |
2 1/2″ x Sch 160 |
65 x Sch 160 |
73 mm |
9.53 mm |
5 To 7 |
14.92 |
2 1/2″ x Sch XXS |
65 x Sch XXS |
73 mm |
14.02 mm |
5 To 7 |
20.40 |
3″ x Sch 40 |
80 x Sch 40 |
88.9 OD |
5.49 mm |
5 To 7 |
11.30 |
3″ x Sch 80 |
80 x Sch 80 |
88.9 mm |
7.62 mm |
5 To 7 |
15.28 |
3″ x Sch 160 |
80 x Sch 160 |
88.9 mm |
11.13 mm |
5 To 7 |
21.35 |
3″ x Sch XXS |
80 x Sch XXS |
88.9 mm |
15.24 mm |
5 To 7 |
27.69 |
3 1/2″ x Sch 40 |
90 x Sch 40 |
101.6 OD |
5.74 mm |
5 To 7 |
13.57 |
3 1/2″ x Sch 80 |
90 x Sch 80 |
101.6 mm |
8.08 mm |
5 To 7 |
18.64 |
4″ x Sch 40 |
100 x Sch 40 |
114.3 OD |
6.02 mm |
5 To 7 |
16.07 |
4″ x Sch 80 |
100 x Sch 80 |
114.3 mm |
8.56 mm |
5 To 7 |
22.33 |
4″ x Sch 120 |
100 x Sch 120 |
114.3 mm |
11.13 mm |
5 To 7 |
28.33 |
4″ x Sch 160 |
100 x Sch 160 |
114.3 mm |
13.49 mm |
5 To 7 |
33.55 |
4″ x Sch XXS |
100 x Sch XXS |
114.3 mm |
17.12 mm |
5 To 7 |
41.04 |
ASTM A106 Gr B Seamless Pipes Wall Thickness
NPS (in) |
Outside Diameter (in) |
ASTM A106 Grade B Pipe Schedule | ||||||||||||
SCH 10 | SCH 20 | SCH 30 | SCH STD | SCH 40 | SCH 60 | SCH XS | SCH 80 | SCH 100 | SCH 120 | SCH 140 | SCH 160 | SCH XXS | ||
ASTM A106 Grade B Pipe Wall Thickness (in) | ||||||||||||||
1/8 | 0.405 | 0.068 | 0.068 | 0.095 | 0.095 | |||||||||
1/4 | 0.540 | 0.088 | 0.088 | 0.119 | 0.119 | |||||||||
3/8 | 0.675 | 0.091 | 0.091 | 0.126 | 0.126 | |||||||||
1/2 | 0.840 | 0.109 | 0.109 | 0.147 | 0.147 | 0.187 | 0.294 | |||||||
3/4 | 1.050 | 0.113 | 0.113 | 0.154 | 0.154 | 0.219 | 0.308 | |||||||
1 | 1.315 | 0.133 | 0.133 | 0.179 | 0.179 | 0.250 | 0.358 | |||||||
1 1/4 | 1.660 | 0.140 | 0.140 | 0.191 | 0.191 | 0.250 | 0.382 | |||||||
1 1/2 | 1.900 | 0.145 | 0.145 | 0.200 | 0.200 | 0.281 | 0.400 | |||||||
2 | 2.375 | 0.154 | 0.154 | 0.218 | 0.218 | 0.344 | 0.436 | |||||||
2 1/2 | 2.875 | 0.203 | 0.203 | 0.276 | 0.276 | 0.375 | 0.552 | |||||||
3 | 3.500 | 0.216 | 0.216 | 0.300 | 0.300 | 0.438 | 0.600 | |||||||
3 1/2 | 4.000 | 0.226 | 0.226 | 0.318 | 0.318 | |||||||||
4 | 4.500 | 0.237 | 0.237 | 0.337 | 0.337 | 0.438 | 0.531 | 0.674 | ||||||
5 | 5.563 | 0.258 | 0.258 | 0.375 | 0.375 | 0.500 | 0.625 | 0.750 | ||||||
6 | 6.625 | 0.280 | 0.280 | 0.432 | 0.432 | 0.562 | 0.719 | 0.864 | ||||||
8 | 8.625 | 0.250 | 0.277 | 0.322 | 0.322 | 0.406 | 0.500 | 0.500 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 | |
10 | 10.750 | 0.250 | 0.307 | 0.365 | 0.365 | 0.500 | 0.500 | 0.594 | 0.719 | 0.844 | 1.000 | 1.125 | 1.000 | |
12 | 12.750 | 0.250 | 0.330 | 0.375 | 0.406 | 0.562 | 0.500 | 0.688 | 0.844 | 1.000 | 1.125 | 1.312 | 1.000 | |
14 | 14.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.500 | 0.750 | 0.938 | 1.094 | 1.250 | 1.406 | |
16 | 16.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.500 | 0.656 | 0.500 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | |
18 | 18.000 | 0.250 | 0.312 | 0.438 | 0.375 | 0.562 | 0.750 | 0.500 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | |
20 | 20.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.594 | 0.812 | 0.500 | 1.031 | 1.281 | 1.500 | 1.750 | 1.969 | |
22 | 22.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.875 | 0.500 | 1.125 | 1.375 | 1.625 | 1.875 | 2.125 | ||
24 | 24.000 | 0.250 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.500 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | |
30 | 30.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.500 | ||||||||
32 | 32.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
34 | 34.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
36 | 36.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.750 | ||||||||
42 | 42.000 | 0.500 | 0.625 | 0.375 | 0.750 |
Applications Industry ASTM A106 Gr B Seamless Pipes
- Pharmaceutical Industry
- Oil Refineries
- Textile Industries
- Nuclear Plants
- Chemical Industries
- Power Plant
- Petrochemicals Industry
- Sugar Industry
- Engineering Industry
- Chemical Industry
- Food Industry
- Marine Industry
