ASME BPE Seamless Tubes

ASME BPE Tubes Exporter, Seamless Tubes, ASME BPE – Products, Steel Pipes And Tubes ASME Bpe Tubes Stockist, ASME BPE Tubes Suppliers, ASME BPE Tubes, ASME BPE Tubes Manufacturer, ASME BPE Dealers, ASME BPE Importer, ASME BPE Exporter

Over the past few years, we have been one of the country’s largest suppliers of ASME BPE seamless tubes to the biopharmaceutical industry. Over this time, we have learned much about ASME BPE seamless tubes. Not all ASME BPE tubes and ASME BPE sanitary fittings are the same.

However, you need more than simply specifying the BPE stamp on your hygienic fittings and pure tubes to guarantee you will receive the highest quality clean pipes and sanitary fittings.

Currently, ASME BPE seamless tubes are produced throughout the world. We have observed that the quality of the tubes varies greatly.

As one of the leading suppliers of ASME BPE fittings and tubing, we have taken significant steps to ensure that all fittings and tubing we supply meet the highest quality standards.

The modern pharmaceutical and medicine industry requires the purest and most exacting tubes & fittings used in the bioprocess line. To ensure safe and effective medicine production, this is necessary.

Ratnaexports.com offers BPE Stainless Steel Tubing and Fittings compliant with ASME BPE standards. The construction of tubing and fittings from sanitary stainless steel 316L is solid, durable, easy to weld, and assemble. They are available in ASME BPE, 3-A, DIN, SMS, ISO, and I-line standards. Pharmaceutics and biotechnology often use ASME BPE tubing and fittings.

Contact Ratna Exports today for a best offer & competitive quotation Of ASME BPE Seamless Tubes

ASME BPE Seamless Tubes Specification

Material	1.4404 (316L)
Heat Lot	Marked with Heat Lot Number
Connection type	Butt Weld, Tri-clamp
Connection Size	1/2″ to 6″
Certification	ASME BPE

Type of ASME BPE Seamless Tubes

ASME BPE Seamless Tubes

Carbon ASME Bpe Seamless Tube

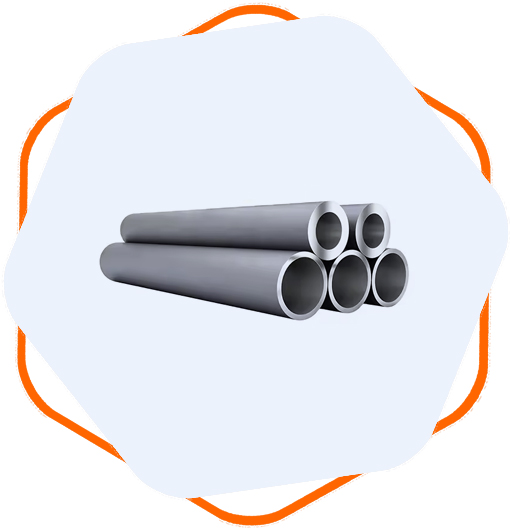

Duplex ASME Bpe Seamless Tube

ASME BPE Alloy Seamless Tube

ASME BPE Seamless Tubes Chemical Composition

Element	316L (wt%)
Carbon (max)	0.035
Manganese (max)	2.00
Phosphorus (max)	0.040
Sulfur	0.005 – 0.017
Silicon (max)	0.75
Nickel	10.0-15.0
Chromium	16.0-18.0
Molybdenum	2.0-3.0

ASME BPE Tubing Dimensions Tolerances

Size OD	Wall Thickness	Outside Diameter Tolerance	Length Tolerance	Wall Thickness Tolerance
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(%)
½	12.7	0.065	1.65	+/-0.005	+/-0.13	+⅛, -0	+3.18, -0	+/-10.0%
¾	19.1	0.065	1.65	+/-0.005	+/-0.1three	+⅛, -0	+3.18, -0	+/-10.0%
1	25.4	0.065	1.65	+/-0.005	+/-0.1three	+⅛, -0	+3.18, -0	+/-10.0%
1½	38.1	0.065	1.65	+/-0.008	+/-0.20	+⅛, -0	+3.18, -0	+/-10.0%
2	50.8	0.065	1.65	+/-0.008	+/-0.20	+⅛, -0	+3.18, -0	+/-10.0%
2½	63.5	0.065	1.65	+/-0.010	+/-0.2five	+⅛, -0	+3.18, -0	+/-10.0%
3	76.2	0.065	1.65	+/-0.010	+/-0.2five	+⅛, -0	+3.18, -0	+/-10.0%
4	101.6	0.083	2.11	+/-0.015	+/-0.3eight	+⅛, -0	+3.18, -0	+/-10.0%
6	152.4	0.109	2.77	+/-0.030	+/-0.76	+1, -0	+25.4, -0	+/-10.0%

Looking to buy ASME BPE Seamless Tubes From a manufacturer in India?

Feel free to call or email us to explore how we can assist in growing your business. It would be our pleasure to collaborate with a valued client like you. Please Call On +91 9920228653 Or Mail Us On [email protected]

Mechanically Polished ASME BPE Tubing

Material Part Number (PL Finish)	Nominal Size (OD)	Wall Thickness	Manufacturing Method	Finish ID (Ra)	Finish OD (Ra)
T316-0.5X.065-S-PL	½” (12.7 mm)	0.065″ (1.651 mm)	Seamless	20 µ-inch (0.51 µm)	32 µ-inch (0.81 µm)
T316-0.75X.065-W-PL	¾” (19.05 mm)	0.065″ (1.651 mm)	Welded	20 µ-inch (0.51 µm)	32 µ-inch (0.81 µm)
T316-1.0X.065-W-PL	1″ (25.4 mm)	0.065″ (1.651 mm)	Welded	20 µ-inch (0.51 µm)	32 µ-inch (0.81 µm)
T316-1.5X.065-W-PL	1½” (38.1 mm)	0.065″ (1.651 mm)	Welded	20 µ-inch (0.51 µm)	32 µ-inch (0.81 µm)
T316-2.0X.065-W-PL	2″ (50.8 mm)	0.065″ (1.651 mm)	Welded	20 µ-inch (0.51 µm)	32 µ-inch (0.81 µm)
T316-2.5X.065-W-PL	2½” (63.5 mm)	0.065″ (1.651 mm)	Welded	20 µ-inch (0.51 µm)	32 µ-inch (0.81 µm)
T316-3.0X.065-W-PL	3″ (76.2 mm)	0.065″ (1.651 mm)	Welded	20 µ-inch (0.51 µm)	32 µ-inch (0.81 µm)
T316-4.0X.083-W-PL	4″ (101.6 mm)	0.083″ (2.1082 mm)	Welded	20 µ-inch (0.51 µm)	32 µ-inch (0.81 µm)

Please note this is an approx ERW Air Pre-Heater Tubes price in India. For final ERW Air Pre-Heater Tubes price list please mail us.

Electropolished BPE Tubing

Material Part Number (PM Finish)	Nominal Size (OD)	Wall Thickness	Manufacturing Method	Finish ID (Ra)	Finish OD (Ra)
T316-0.5X.065-S-PM	½” (12.7 mm)	0.065″ (1.651 mm)	Seamless	15 µ-inch (0.38 µm)	32 µ-inch (0.81 µm)
T316-0.75X.065-W-PM	¾” (19.05 mm)	0.065″ (1.651 mm)	Welded	15 µ-inch (0.38 µm)	32 µ-inch (0.81 µm)
T316-1.0X.065-W-PM	1″ (25.4 mm)	0.065″ (1.651 mm)	Welded	15 µ-inch (0.38 µm)	32 µ-inch (0.81 µm)
T316-1.5X.065-W-PM	1½” (38.1 mm)	0.065″ (1.651 mm)	Welded	15 µ-inch (0.38 µm)	32 µ-inch (0.81 µm)
T316-2.0X.065-W-PM	2″ (50.8 mm)	0.065″ (1.651 mm)	Welded	15 µ-inch (0.38 µm)	32 µ-inch (0.81 µm)
T316-2.5X.065-W-PM	2½” (63.5 mm)	0.065″ (1.651 mm)	Welded	15 µ-inch (0.38 µm)	32 µ-inch (0.81 µm)
T316-3.0X.065-W-PM	3″ (76.2 mm)	0.065″ (1.651 mm)	Welded	15 µ-inch (0.38 µm)	32 µ-inch (0.81 µm)
T316-4.0X.083-W-PM	4″ (101.6 mm)	0.083″ (2.1082 mm)	Welded	15 µ-inch (0.38 µm)	32 µ-inch (0.81 µm)

Applications Industry ASME BPE Seamless Tubes
